- Product description
- Features
- Installation method
Description

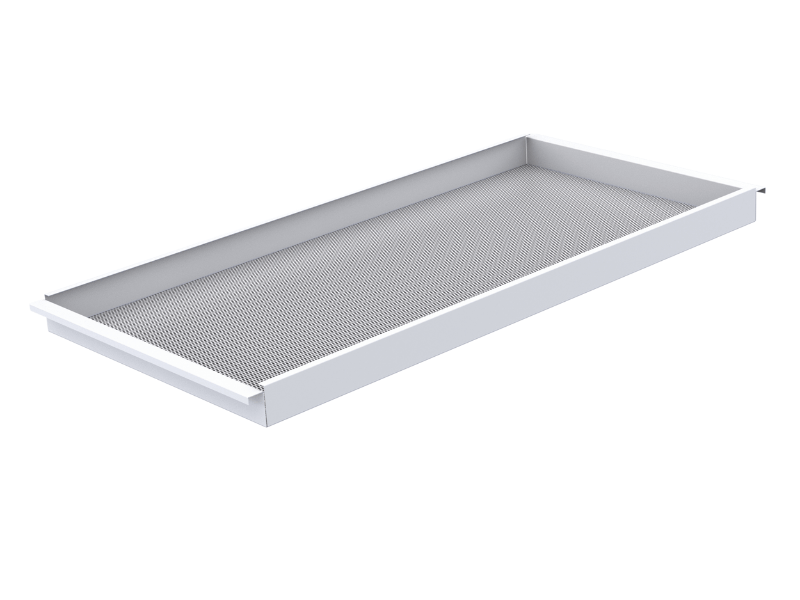

Self-supporting panels with Z-shaped upturned ends, laid on a visible framework of C-rail profiles. The grids are perpendicular to the facades according to the layout plan.
The trays are made of 5 to 8/10th-thick sheet steel, perforated or unperforated, with a wide choice of colors.
The sharp-edged panels are folded in a Z-shape and secured at each end to allow the panels to rest on the C-rails and ensure that the frame remains spaced. The surface of the panels is flush with that of the supporting profiles.
Usage
Open-plan office, meeting room, computer room.
Please select contact form.
The materials
Galvanized steel, 0.5 to 0.8 mm thick depending on
widths.
Formats
Standard widths 300 / 600 / 675 mm
Other widths on request.
Lengths within self-supporting limits
(675 x 1800 mm maximum)
Colors
– Pre-painted white 137 (similar to RAL 9003)
– Post-lacquered polyester powder paint RAL :
– All other RAL colors on request
Light reflection
Rapport CSTB EMI 18-26077242-1 :
Up to 88% post-lacquered RAL 9016
Overview in the Finishes section of the catalog
The fire
Reaction to fire (according to EN 13501-1)
Euroclass A1 for products :
– Unperforated pre-painted trays
– Pre-painted trays with non-woven fleece or rock wool lining
surfaced
Euroclass A2-s1,d0 for products :
– Post-painted trays with or without lining
Acoustics
Sound absorption measured in accordance with NF EN ISO 354.
Acoustic certificates on request
Acoustic certificates on request
Perforations
Standard :
On request :
Options
Special cut-outs for lighting fixtures and HVAC equipment.
Heavy bin (L)
Activation of hot/cold bins.
FAST opening
Cleaning
Metal ceilings are durable and easy to clean.
For dust: Dry cleaning with a soft cloth or vacuum cleaner with soft bristle brush.
For stains: Clean with a damp cloth soaked in a non-abrasive cleaner diluted in water. For persistent, greasy stains, diluted alcoholic solutions can be used.
The environment
100% recyclable ceiling, odorless, easy to maintain and non-generating of dust, particles or vapor.
No VOC or formaldehyde emissions.
(Class A for rockwool-based trays).
EHDS sheet available on the INIES website (www.inies.fr).
All special profiles available on request
Installation in accordance with DTU 58.1
Frames: Panels laid on flat rails (various widths, with or without shadow gap) Hangers
positioned at 1200 mm centres, starting 300 mm from the wall. Clamping of
is imperative, using spacer profiles such as counter-drilled angles, to prevent
to prevent any movement of the framing that could cause the panels to fall.
Edges: Panels are installed on single angle or hollow joint.
Dismantling: Open by pushing vertically.
1- EC2 BRZ Bac
2- REC L edge angle
3- Rail C PREC C
4- C track hanger SUSP C
5- Splice rail C RACC C
